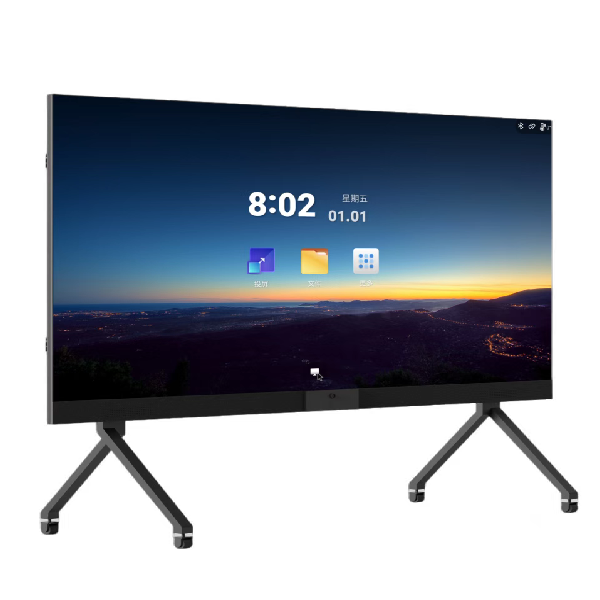

ClarityTouch – Interactive All in One Series
ClarityTouch – Interactive All in One Series - Image 2
ClarityTouch – Interactive All in One Series - Image 3
ClarityTouch – Interactive All in One Series - Image 4
in stock

ClarityTouch – Interactive All in One Series

 All in One Series

Seamless Display. Instant Collaboration. The ClarityTouch Series integrates a vibrant LED screen, control system, audio, and multi-touch capability into a single, ultra-slim unit. It’s engineered for quick setup and seamless wireless content sharing, making it the perfect replacement for traditional interactive flat panels in meeting and training rooms.

Please log in to add items to your favorites.

Features :

•Integrated Multi-Touch Functionality for Interactive Applications
• Advanced Flip Chip COB AIO Technology for Enhanced Reliability
• Native 16:9 Aspect Ratio for Seamless Content Display
• Wireless Screen Sharing and Presentation Capability
• Front-Serviceable Module Design for Easy Maintenance
• Ultra-High Brightness of ≥1200 Nits for Clear Visibility

Product Features

Plug & Play Dual OS System

Integrated Windows and Android operating systems for seamless operation.

Ultra High Brightness ≥1200 Nits

High luminance output ensures clarity even in brightly lit rooms.

Flip Chip COB Technology

Advanced COB architecture ensures higher durability, uniformity, and visual performance.

Wide Color Gamut (DCI-P3)

Enhanced color accuracy ideal for presentations, graphics, and premium content.

Inbuilt Wireless Presentation

Effortlessly share content from laptops and mobile devices without cables.

Superior 15000:1 Contrast Ratio

Delivers crisp image depth with deeper blacks and sharper visuals.

True Interactivity

Multi-touch capability supports collaboration, annotation, and active engagement.

Wide Viewing Angle

H170° / V170° visibility ensures everyone sees content clearly from any angle.

Technical Specifications

Technical Parameters AIO 108 COB 2K AIO-136 COB 2K AIO-162 COB 4K AIO-135 4K
Diagonal Size 108" 136" 162" 135"
Display Area (WxH, mm) 2,400×1,350 3,000×1,687.5 3,600×2,025 3,000×1,687.5
Overall Size (WxHxD, mm) 2,411×1,476×30.4 3,011×1,813.5×30.4 3,611×2,151×30.4 3,011×1,813.5×30.4
Pixel Pitch (mm) 1.25 1.5625 0.9375 0.78125
Resolution 1920(H)×1080(V) – Full HD 1920(H)×1080(V) – Full HD 3840(H)×2160(V) – 4K-UHD 3840(H)×2160(V) – 4K-UHD
Aspect Ratio 16:09 16:09 16:09 16:09
Cabinet Material Aluminum Aluminum Aluminum Aluminum
Maintenance Access Front Front Front Front
Viewing Angle (H/V) 170°/170° 170°/170° 170°/170° 170°/170°
Brightness Typical (cd/m²) 600 (adjustable up or down) 600 (adjustable up or down) 600 (adjustable up or down) 600 (adjustable up or down)
Refresh Rate (Hz) 3840 3840 3840 3840
Typical Contrast Ratio 25,000:1 25,000:1 25,000:1 25,000:1
Inputs 2×HDMI, 3×USB 3.0 2×HDMI, 3×USB 3.0 2×HDMI, 3×USB 3.0 2×HDMI, 3×USB 3.0
Outputs 1×Audio Out, 1×RJ45 1×Audio Out, 1×RJ45 1×Audio Out, 1×RJ45 1×Audio Out, 1×RJ45
Remote Control Operation IR Remote IR Remote IR Remote IR Remote
Speakers Built In Built In Built In Built In
Rated Power 2×12W 2×12W 2×12W 2×12W
Operating Voltage AC 100 V ~ 240 V, 50/60Hz AC 100 V ~ 240 V, 50/60Hz AC 100 V ~ 240 V, 50/60Hz AC 100 V ~ 240 V, 50/60Hz
Weight (kg) 80 126 180 135
Operating Temperature / Humidity -10°C ~ +45°C / 10~90% RH -10°C ~ +45°C / 10~90% RH -10°C ~ +45°C / 10~90% RH -10°C ~ +45°C / 10~90% RH
Certification CE, FCC, ROHS, EMC, LVD, BIS
