Clarity X – Professional Flip Chip COB LED Series

LED Series

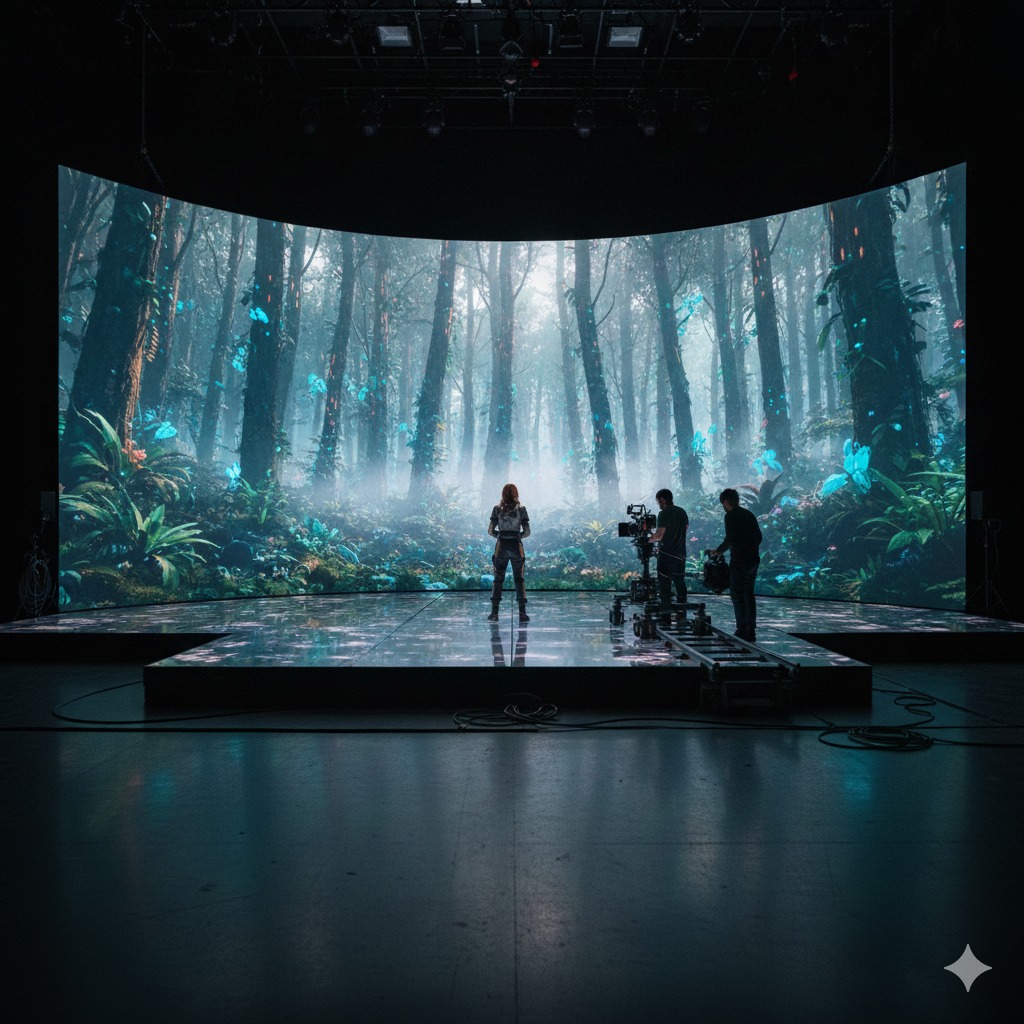

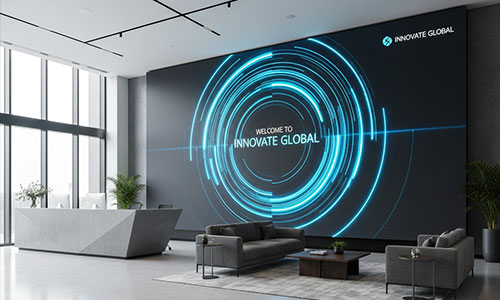

Flip Chip Technology for Unrivaled Visuals and Durability. The Clarity X Flip Chip COB Series utilizes Flip Chip technology with Common Cathode design for unparalleled durability, supreme energy efficiency, and deep contrast. It sets the standard for professional-grade environments, from broadcast studios to corporate boardrooms.

Please log in to add items to your favorites.

Features :

  • Flip Chip COB Technology for Impact Resistance & Longer Lifespan (No Wire Bonding)
  • Common Cathode Technology for High Energy Efficiency
  • Extreme Fine Pixel Pitches (P0.625 to P1.87)
  • Standard 16:9 Aspect Ratio for Seamless 2K/4K/8K Splicing
  • Superior 15000:1 Contrast Ratio
  • Ultra-Wide 170° H/V Viewing Angle

Product Features

Flip Chip COB Technology

No wire bonding for robust protection, excellent stability, and a longer lifespan.

Superior Contrast Ratio

An outstanding 15000:1 contrast ratio provides deep blacks and vivid colors across platforms.

Extreme Fine Pitch Range

Available from P0.625 up to P1.87 for razor-sharp visuals regardless of the distance.

Ultra High Brightness Ratio

Brightness of ≥1200 Nits ensures stunning visibility, even in high ambient light environments.

Common Cathode Design

Advanced circuit design that significantly reduces power consumption and improves efficiency.

Wide Color Gamut Support

Supports the DCI-P3 color gamut for accurate and lifelike color reproduction.

Ultra High Refresh Rate

7680Hz refresh rate ensures flicker-free, smooth performance for broadcast and fast-moving content.

Ultra Wide Viewing Angle

H170° / V170° viewing angle ensures a perfect picture from virtually any position.

Technical Specifications

Technical Parameters P0.625 P0.78 P0.93 P1.25 P1.56 P1.87
Pixel Pitch P0.625 P0.78 P0.93mm P1.25mm P1.56mm P1.87mm
Pixel Density 2,560,000 px/㎡ 1,638,400 px/㎡ 1,137,777 px/㎡ 640,000 px/㎡ 409,600 px/㎡ 284,444 px/㎡
LED Chip Flip Chip COB Flip Chip COB Flip Chip COB Flip Chip COB Flip Chip COB Flip Chip COB
Module Size (W×H) 150×168.75mm 150×168.75mm 150×168.75mm 150×168.75mm 150×168.75mm 150×168.75mm
Module Resolution 240×270 dots 192×216 dots 160×180 dots 120×135 dots 96×108 dots 80×90 dots
Surface Treatment Matt COB Matt COB Matt COB Matt COB Matt COB Matt COB
Surface Hardness 4H 4H 4H 4H 4H 4H
Panel Size (W×H×D) 600×337.5×39.5mm 600×337.5×39.5mm 600×337.5×39.5mm 600×337.5×39.5mm 600×337.5×39.5mm 600×337.5×39.5mm
Panel Weight 4.5 kg 4.5 kg 4.5 kg 4.5 kg 4.5 kg 4.5 kg
Panel Resolution 960×540 768×432 640×360 480×270 384×216 320×180
Material Die-cast Aluminium Die-cast Aluminium Die-cast Aluminium Die-cast Aluminium Die-cast Aluminium Die-cast Aluminium
Circuit Design Common Cathode Circuit Common Cathode Circuit Common Cathode Circuit Common Cathode Circuit Common Cathode Circuit Common Cathode Circuit
Flash Correction Storage Applicable Applicable Applicable Applicable Applicable Applicable
Brightness 600–800 Nits 600–800 Nits 600–800 Nits 600–800 Nits 600–800 Nits 600–800 Nits
Refresh Rate 7680Hz 7680Hz 7680Hz 7680Hz 7680Hz 7680Hz
Contrast Ratio 10000:1 10000:1 10000:1 10000:1 10000:1 10000:1
Color Temperature 9300K (Standard) 9300K (Standard) 9300K (Standard) 9300K (Standard) 9300K (Standard) 9300K (Standard)
Viewing Angle H170° / V170° H170° / V170° H170° / V170° H170° / V170° H170° / V170° H170° / V170°
Input Voltage AC 100–240V 50/60Hz AC 100–240V 50/60Hz AC 100–240V 50/60Hz AC 100–240V 50/60Hz AC 100–240V 50/60Hz AC 100–240V 50/60Hz
Max. Power Consumption 190W/panel 170W/panel 150W/panel 140W/panel 140W/panel 130W/panel
Maintenance Way Front Service Front Service Front Service Front Service Front Service Front Service
IP Level (PCB Surface) IP54 Front IP54 Front IP54 Front IP54 Front IP54 Front IP54 Front
Lifetime at 50% Brightness 100,000 hours 100,000 hours 100,000 hours 100,000 hours 100,000 hours 100,000 hours
Operating Temperature / Humidity -10°C~+40°C / 10%RH–90%RH -10°C~+40°C / 10%RH–90%RH -10°C~+40°C / 10%RH–90%RH -10°C~+40°C / 10%RH–90%RH -10°C~+40°C / 10%RH–90%RH -10°C~+40°C / 10%RH–90%RH
Storage Temperature / Humidity -20°C~+60°C / 10%RH–90%RH -20°C~+60°C / 10%RH–90%RH -20°C~+60°C / 10%RH–90%RH -20°C~+60°C / 10%RH–90%RH -20°C~+60°C / 10%RH–90%RH -20°C~+60°C / 10%RH–90%RH
Application Indoor Indoor Indoor Indoor Indoor Indoor
Certification CE, FCC, ROHS, EMC, LVD, BIS
