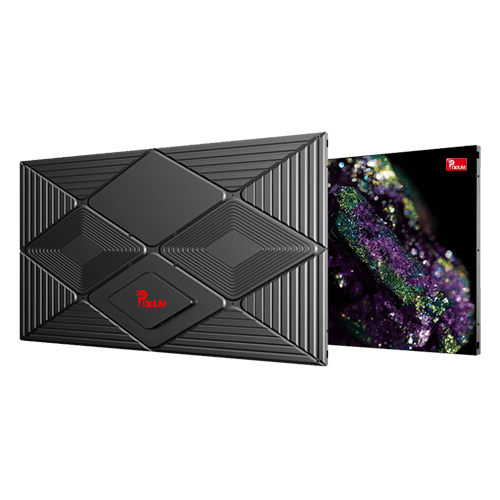

AT Series
NX COB Series

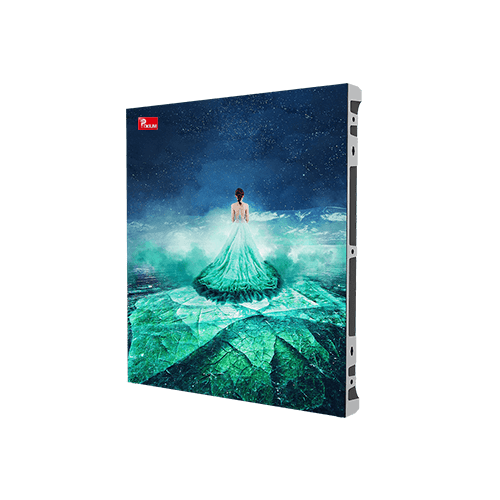

Koala Series

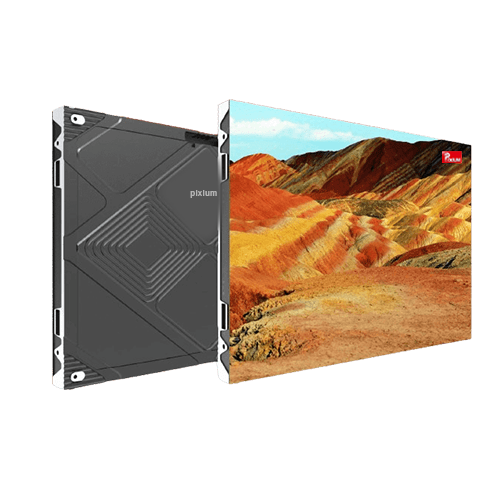

NT Series
in stock

NX COB

NX COB Cathode

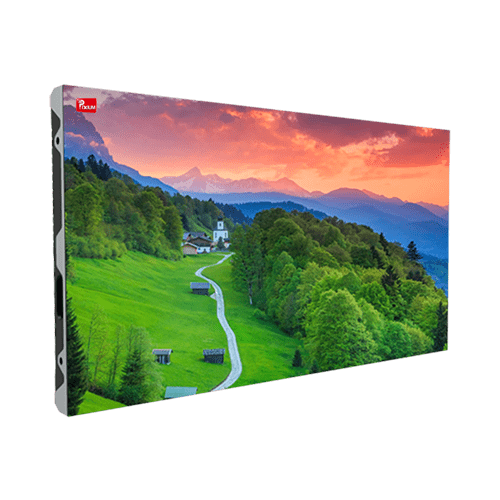

The Pixium LED NX COB Cathode Series redefines indoor displays with ultra-fine 0.78mm–1.56mm pixel pitches using advanced Chip-on-Board (COB) technology. Featuring common cathode drive for 40% lower power consumption, these displays deliver 600-800 nits brightness with 7000:1 contrast. The ultra-thin 40mm aluminum cabinets (6.5kg) support front maintenance and HDR visuals. Ideal for control rooms and studios, they offer 3840Hz refresh rates and 16-bit color depth for flawless performance.

Please log in to add items to your favorites.

The Pixium LED NX COB Cathode Series combines cutting-edge engineering with practical design for mission-critical visual environments, offering five pixel pitch options for versatile applications.

  • Precision Pixel Pitches (0.78mm–1.56mm): Including 0.78mm, 0.9375mm, and dual 1.25mm/1.56mm options with COB packaging for seamless visuals :cite[3]:cite[6].
  • Energy-Efficient Design: Common cathode technology reduces power consumption to ≤150W/㎡ average (≤650W/㎡ max) while lowering operating temperatures :cite[3]:cite[6].
  • Industrial-Grade Protection: IP30-rated with die-cast aluminum cabinets and ≤0.3mm flatness tolerance for perfect alignment :cite[3].
  • Studio-Quality Imaging: 7000:1 contrast ratio with 16-bit color depth and HDR10 support for vibrant, accurate colors even at low brightness :cite[3]:cite[6].
  • Simplified Installation: 6.5kg ultra-thin cabinets (40mm depth) with front-access maintenance and hidden cable management :cite[3].
  • Reliable Operation: -10°C to +40°C operating range with 100,000-hour lifespan for 24/7 environments :cite[3].

From broadcast studios to corporate boardrooms, the NX COB Cathode Series delivers uncompromising quality with reduced total cost of ownership.

NX COB Cathode Series – Technical Specifications

Pixel Pitch (mm) 0.78 0.9375 0.9375 1.25 1.25 1.25 1.56
Model NX COB PLUS 0.78 NX COB PLUS 0.9 NX COB PREMIUM 0.9 NX COB PLUS 1.25 NX COB PREMIUM 1.25 NX COB 1.25 NX COB 1.56
Cathode / Anode Tech Cathode Cathode Cathode Cathode Cathode Anode Cathode
Module Resolution (W×H) 192×216 160×180 160×180 120×135 120×135 120×135 96×108
Module Dimension (mm) 150×168.75
Cabinet Resolution (W×H) 768×432 640×360 640×360 480×270 480×270 480×270 600×337.5×33.6
Weight (KG/Cabinet) 4.2 4.2 4.2 4.2 4.2 4.2 4.7
IP Rating ≥ IP 5X ≥ IP 5X ≥ IP 5X ≥ IP 5X ≥ IP 5X ≥ IP 5X IP65 Module Surface Only
Brightness (nits) 600–700 600–700 600–700 600–700 600–700 ≥800 ≥800
Viewing Angle (H/V °) 170 / 170
Max Contrast Ratio 20000:1 18000:1
Refresh Rate (Hz) 3840
Power Consumption (W/m²) ≤470 / ≤160 ≤268 / ≤90 ≤268 / ≤90 ≤225 / ≤80 ≤225 / ≤80 ≤335 / ≤120 ≥350 / ≥150
Operating Temp / RH –10~40°C / 10–90%
